Graphical network model (GNM)
Source:vignettes/articles/Graphical network model (GNM).Rmd
Graphical network model (GNM).RmdThis vignette guides you through the new functionality that turns a
mrIML multi-response model into a graphical network model
(GNM). There are also new functions in mrIML (>= 2.0.0)
that can be used in non-GNM models, such as for single-taxon SDMs, epi
models, gene-environment association (GEA) studies, and landscape
genetics. Advances in Tidymodels are at the core of
these functions, as are exciting developments in interpretable machine
learning (e.g., for quickly quantifying interactions through
H-statistics). The capability to capture uncertainty via bootstraps and
spatial patterns are also features of
this mrIML module. The examples come from the microbiome
world but are, of course, generalizable to any multi-response
problem.
Currently, the models are optimized and tested on presence/absence data. Models suitable for abundance data will be added in the future.
To demonstrate, first, we need to load some packages and data. The
first example uses coinfection data from New Caledonian
Zosterops species. A single continuous covariate is also
included (scale.prop.zos), which reflects the relative
abundance of Zosterops species among different sample
sites.
library(mrIML)
library(tidymodels)
library(flashlight)
library(ggplot2)
library(patchwork)
library(igraph)
library(ggnetwork)
library(network)
set.seed(7007)
data <- MRFcov::Bird.parasites
Y <- data %>%
dplyr::select(-scale.prop.zos) %>%
dplyr::select(order(everything()))
X <- data %>%
dplyr::select(
scale.prop.zos
)
X1 <- YNote that the inclusion of X1 converts
mrIML into a Joint Species Distribution Model (JSDM) by
directly adding the presence/absence patterns of the other taxa into the
model as predictors (along with other environmental/host covariates).
Note that the order of X1 and Y needs to
match.
Setting up the models
Built into the mrIML architecture (and a big advantage
of tidymodels) is the capability to change the underlying
model easily. We are going to set up two models to compare: a random
forest model (RF) and logistic regression (LM). mrIML takes
advantage of multi-core processing, so we set it up here to run on 5
cores. These steps are the same as in
mrIML (< 2.0.0).
future::plan("multisession", workers = 5)Running the models
Aside from adding JSDM functionality with the X1 call,
we have also enabled mrIML to tune hyperparameters using
the very efficient racing option (see Kuhn (2014)). In
brief, this racing option takes a small subsample of parameters and
eliminates combinations that do not improve fit using a
repeated-measures ANOVA model with finetune::tune_race_anova().
Setting racing = FALSE reverts to a grid search if you want
to manually set the tuning grid size (i.e., using tune::tune_grid()).
For logistic regression, there are no parameters to tune, so set
racing = FALSE.
#random forest
yhats_rf <- mrIMLpredicts(
X = X,
Y = Y,
X1 = Y,
Model = model_rf,
prop = 0.7,
k = 5,
racing = TRUE
)
#> | | | 0% | |================== | 25% | |=================================== | 50% | |==================================================== | 75% | |======================================================================| 100%
#linear model
yhats_lm <- mrIMLpredicts(
X = X,
Y = Y,
X1 = Y,
Model = model_lm ,
balance_data = "no",
prop = 0.6,
k = 5,
racing = FALSE
)
#> | | | 0% | |================== | 25% | |=================================== | 50% | |==================================================== | 75% | |======================================================================| 100%Comparing performance
It’s important to compare whether there are any advantages to using a random forest approach. Interpretation would be easier overall if logistic regression gave similar predictive performance.
ModelPerf_rf <- mrIMLperformance(yhats_rf)
ModelPerf_rf[[1]] #across all parasites
#> # A tibble: 4 × 8
#> response model_name roc_AUC mcc sensitivity ppv specificity prevalence
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Hzosteropis rand_fore… 0.951 0.714 0.941 0.923 0.758 0.265
#> 2 Hkillangoi rand_fore… 0.790 0.218 0.918 0.926 0.308 0.116
#> 3 Plas rand_fore… 0.902 0.438 0.955 0.875 0.4 0.196
#> 4 Microfilaria rand_fore… 0.905 0 1 0.896 0 0.0980
ModelPerf_rf[[2]] #overall
#> [1] 0.3426539
ModelPerf_lm <- mrIMLperformance(yhats_lm)
ModelPerf_lm[[1]]
#> # A tibble: 4 × 8
#> response model_name roc_AUC mcc sensitivity ppv specificity prevalence
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Hzosteropis logistic_… 0.810 0.335 0.922 0.776 0.346 0.265
#> 2 Hkillangoi logistic_… 0.657 0.0520 0.975 0.897 0.0526 0.116
#> 3 Plas logistic_… 0.774 0.119 0.972 0.815 0.0857 0.196
#> 4 Microfilar… logistic_… 0.878 0.362 0.975 0.930 0.294 0.0980
ModelPerf_lm[[2]]
#> [1] 0.2169666

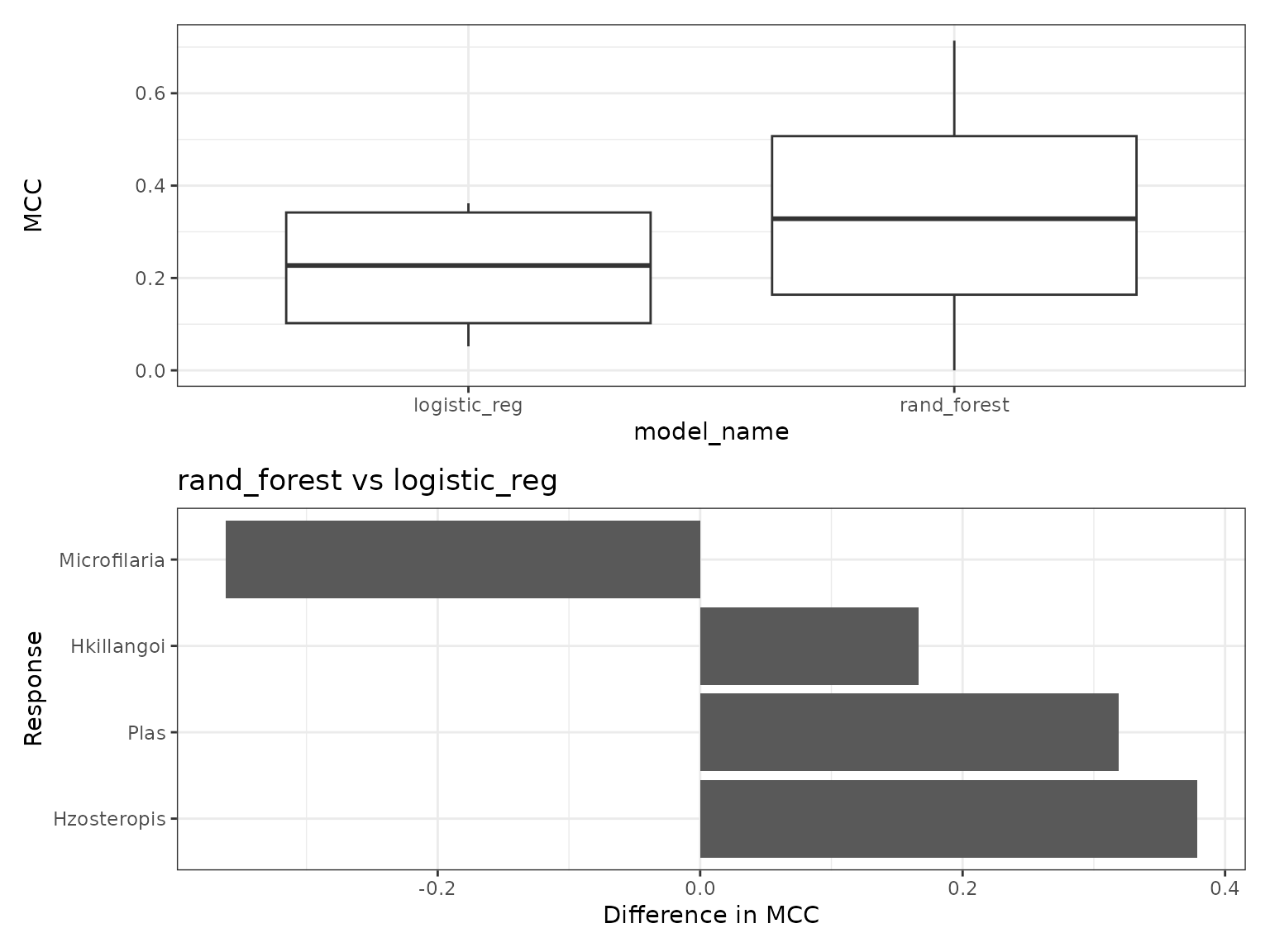

plots <- mrPerformancePlot(
ModelPerf1 = ModelPerf_lm,
ModelPerf2 = ModelPerf_rf,
mode = "classification"
)
plots[[1]] /
plots[[2]]_files/figure-html/perf-1.png)
plots[[3]]
#> # A tibble: 4 × 6
#> response metric_metric_logist…¹ metric_metric_rand_f…² outlier_outlier_logi…³
#> <chr> <dbl> <dbl> <lgl>
#> 1 Hzostero… 0.335 0.714 NA
#> 2 Hkillang… 0.0520 0.218 NA
#> 3 Plas 0.119 0.438 NA
#> 4 Microfil… 0.362 0 NA
#> # ℹ abbreviated names: ¹metric_metric_logistic_reg, ²metric_metric_rand_forest,
#> # ³outlier_outlier_logistic_reg
#> # ℹ 2 more variables: outlier_outlier_rand_forest <lgl>, diff_mod1_2 <dbl>If we just look at the overall AUC values, model performance appears quite similar (0.89 for the RF and 0.78 for the LM). However, when we look at the Matthews correlation coefficient (MCC) for each taxon in the LM model, we see that for H.killangoi and Plas (Plasmodium), the values are much lower (an overall MCC of 0.22 for LM is basically just a guess, compared to 0.34 for the RF). Remember, the classes are imbalanced, so AUC tends to be an inflated measure. This provides evidence that non-linear relationships can improve predictive performance.
Next, we ask whether including putative associations between taxa improves model performance, or whether the relationship between parasites and host relative abundance alone is sufficient (i.e., assuming independence between the parasites).
yhats_rf_noAssoc <- mrIMLpredicts(
X = X,
Y = Y,
Model = model_rf,
prop = 0.7,
k = 5,
racing = TRUE
)
#> | | | 0% | |================== | 25% | |=================================== | 50% | |==================================================== | 75% | |======================================================================| 100%
ModelPerf_rf_noAssoc <- mrIMLperformance(yhats_rf_noAssoc)
ModelPerf_rf_noAssoc[[1]]
#> # A tibble: 4 × 8
#> response model_name roc_AUC mcc sensitivity ppv specificity prevalence
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Hzosteropis rand_fore… 0.869 0.544 0.891 0.882 0.647 0.265
#> 2 Hkillangoi rand_fore… 0.678 0 1 0.948 0 0.116
#> 3 Plas rand_fore… 0.746 0.475 0.889 0.897 0.593 0.196
#> 4 Microfilaria rand_fore… 0.801 0.459 1 0.947 0.222 0.0980
ModelPerf_rf[[1]] #performance including associations
#> # A tibble: 4 × 8
#> response model_name roc_AUC mcc sensitivity ppv specificity prevalence
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Hzosteropis rand_fore… 0.951 0.714 0.941 0.923 0.758 0.265
#> 2 Hkillangoi rand_fore… 0.790 0.218 0.918 0.926 0.308 0.116
#> 3 Plas rand_fore… 0.902 0.438 0.955 0.875 0.4 0.196
#> 4 Microfilaria rand_fore… 0.905 0 1 0.896 0 0.0980You can see that overall, including associations improves model
performance, particularly for predicting H.killangoi and
Microfilaria. Using MCC to compare models is problematic
because, in the association-free model, it’s undefined for these taxa
(NA values arise because there are no false negatives for
low-prevalence taxa). Positive predictive value
(PPV) is useful in this case and shows that without associations, we
can’t predict the occurrence of these taxa (PPV = 0 for both). Including
associations increases PPV to ~0.2—not great, as 80% of our positive
predictions for these taxa are false.
Downsampling
Including associations makes a difference, but how can we improve predictions for our two rarer taxa? Upsampling is possible, but in this case, we’ll try downsampling to see if correcting class imbalance improves model fit.
yhats_rf_downSamp <- mrIMLpredicts(
X = X,
Y = Y,
X1 = Y,
Model = model_rf,
balance_data = "down", #down sampling
prop = 0.75,
k = 5,
racing = TRUE
)
#> | | | 0% | |================== | 25% | |=================================== | 50% | |==================================================== | 75% | |======================================================================| 100%
ModelPerf_rf_downSamp <- mrIMLperformance(yhats_rf_downSamp)
ModelPerf_rf_downSamp[[1]]
#> # A tibble: 4 × 8
#> response model_name roc_AUC mcc sensitivity ppv specificity prevalence
#> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Hzosteropis rand_fore… 0.903 0.600 0.802 0.929 0.844 0.265
#> 2 Hkillangoi rand_fore… 0.901 0.430 0.740 1 1 0.116
#> 3 Plas rand_fore… 0.863 0.525 0.739 0.956 0.88 0.196
#> 4 Microfilaria rand_fore… 0.942 0.448 0.760 1 1 0.0980Look at those PPV values now—much better. Our false positive rate is down to <6% overall. Now that we are happy with the performance of the model, we can interrogate it further.
Interpreting the model
In many cases, like this dataset, community or microbiome data tend
to be small in size. Applying stochastic machine learning algorithms to
such data can lead to challenges. For instance, variable importance may
vary substantially when we build multiple models using the same data and
algorithm. To handle this variability and better understand prediction
uncertainty, mrIML now includes functionality to capture
uncertainty in the tuned model using bootstrapping. Additionally, this approach helps estimate how
variables affect the response, and these estimates align with those from
traditional linear regression models (see Cook et al., 2021).
mrIML makes it easy to obtain bootstrap estimates for a
variety of interpretable machine learning tools and uses these estimates
to construct marginalized co-occurrence networks. First, let’s perform
bootstrapping and calculate variable importance.
bs_malaria <- mrBootstrap(
yhats_rf,
num_bootstrap = 100,
downsample = TRUE
)
#> | | | 0% | |= | 1% | |= | 2% | |== | 2% | |== | 3% | |== | 4% | |=== | 4% | |=== | 5% | |==== | 5% | |==== | 6% | |===== | 6% | |===== | 7% | |===== | 8% | |====== | 8% | |====== | 9% | |======= | 10% | |======== | 11% | |======== | 12% | |========= | 12% | |========= | 13% | |========= | 14% | |========== | 14% | |========== | 15% | |=========== | 15% | |=========== | 16% | |============ | 16% | |============ | 17% | |============ | 18% | |============= | 18% | |============= | 19% | |============== | 20% | |=============== | 21% | |=============== | 22% | |================ | 22% | |================ | 23% | |================ | 24% | |================= | 24% | |================= | 25% | |================== | 25% | |================== | 26% | |=================== | 26% | |=================== | 27% | |=================== | 28% | |==================== | 28% | |==================== | 29% | |===================== | 30% | |====================== | 31% | |====================== | 32% | |======================= | 32% | |======================= | 33% | |======================= | 34% | |======================== | 34% | |======================== | 35% | |========================= | 35% | |========================= | 36% | |========================== | 36% | |========================== | 37% | |========================== | 38% | |=========================== | 38% | |=========================== | 39% | |============================ | 40% | |============================= | 41% | |============================= | 42% | |============================== | 42% | |============================== | 43% | |============================== | 44% | |=============================== | 44% | |=============================== | 45% | |================================ | 45% | |================================ | 46% | |================================= | 46% | |================================= | 47% | |================================= | 48% | |================================== | 48% | |================================== | 49% | |=================================== | 50% | |==================================== | 51% | |==================================== | 52% | |===================================== | 52% | |===================================== | 53% | |===================================== | 54% | |====================================== | 54% | |====================================== | 55% | |======================================= | 55% | |======================================= | 56% | |======================================== | 56% | |======================================== | 57% | |======================================== | 58% | |========================================= | 58% | |========================================= | 59% | |========================================== | 60% | |=========================================== | 61% | |=========================================== | 62% | |============================================ | 62% | |============================================ | 63% | |============================================ | 64% | |============================================= | 64% | |============================================= | 65% | |============================================== | 65% | |============================================== | 66% | |=============================================== | 66% | |=============================================== | 67% | |=============================================== | 68% | |================================================ | 68% | |================================================ | 69% | |================================================= | 70% | |================================================== | 71% | |================================================== | 72% | |=================================================== | 72% | |=================================================== | 73% | |=================================================== | 74% | |==================================================== | 74% | |==================================================== | 75% | |===================================================== | 75% | |===================================================== | 76% | |====================================================== | 76% | |====================================================== | 77% | |====================================================== | 78% | |======================================================= | 78% | |======================================================= | 79% | |======================================================== | 80% | |========================================================= | 81% | |========================================================= | 82% | |========================================================== | 82% | |========================================================== | 83% | |========================================================== | 84% | |=========================================================== | 84% | |=========================================================== | 85% | |============================================================ | 85% | |============================================================ | 86% | |============================================================= | 86% | |============================================================= | 87% | |============================================================= | 88% | |============================================================== | 88% | |============================================================== | 89% | |=============================================================== | 90% | |================================================================ | 91% | |================================================================ | 92% | |================================================================= | 92% | |================================================================= | 93% | |================================================================= | 94% | |================================================================== | 94% | |================================================================== | 95% | |=================================================================== | 95% | |=================================================================== | 96% | |==================================================================== | 96% | |==================================================================== | 97% | |==================================================================== | 98% | |===================================================================== | 98% | |===================================================================== | 99% | |======================================================================| 100%

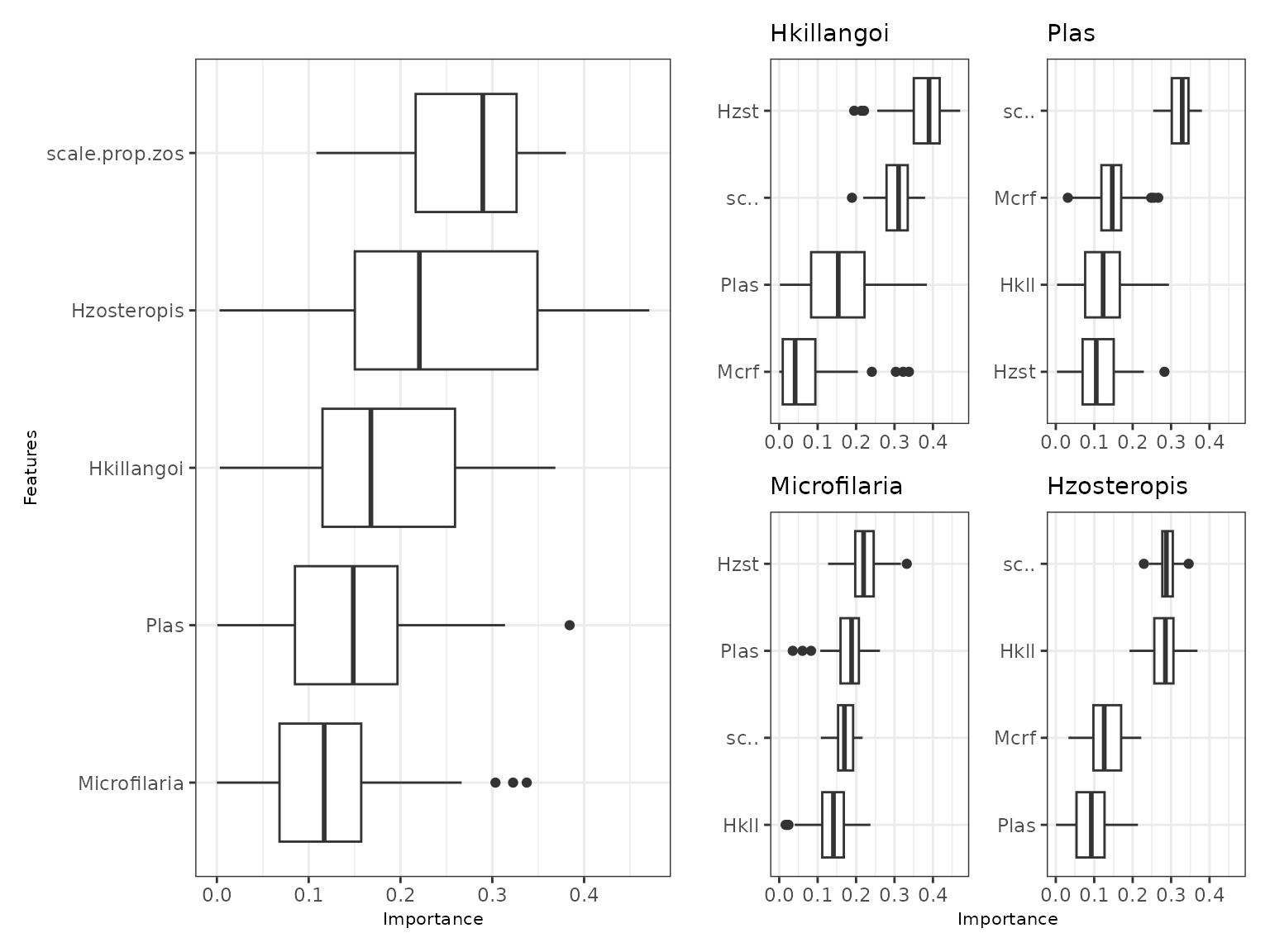

bs_impVI <- mrVip(
mrIMLobj = yhats_rf,
mrBootstrap_obj = bs_malaria,
model_perf = ModelPerf_rf
)
bs_impVI[[3]]_files/figure-html/bootstraps-1.png)
You can see that host abundance is the most important predictor of this parasite community (followed by H.zosteropsis). However, the sub-figure on the right shows substantial variability. For example, H.zosteropsis is the most important predictor for the occurrence of Microfilaria, and host abundance (shortened to “sc..”) is less important.
Bootstrap partial dependence plots
To examine the relationship between each variable and community
structure, mrIML has a convenient wrapper to plot
bootstrapped partial dependencies for a taxon of interest.

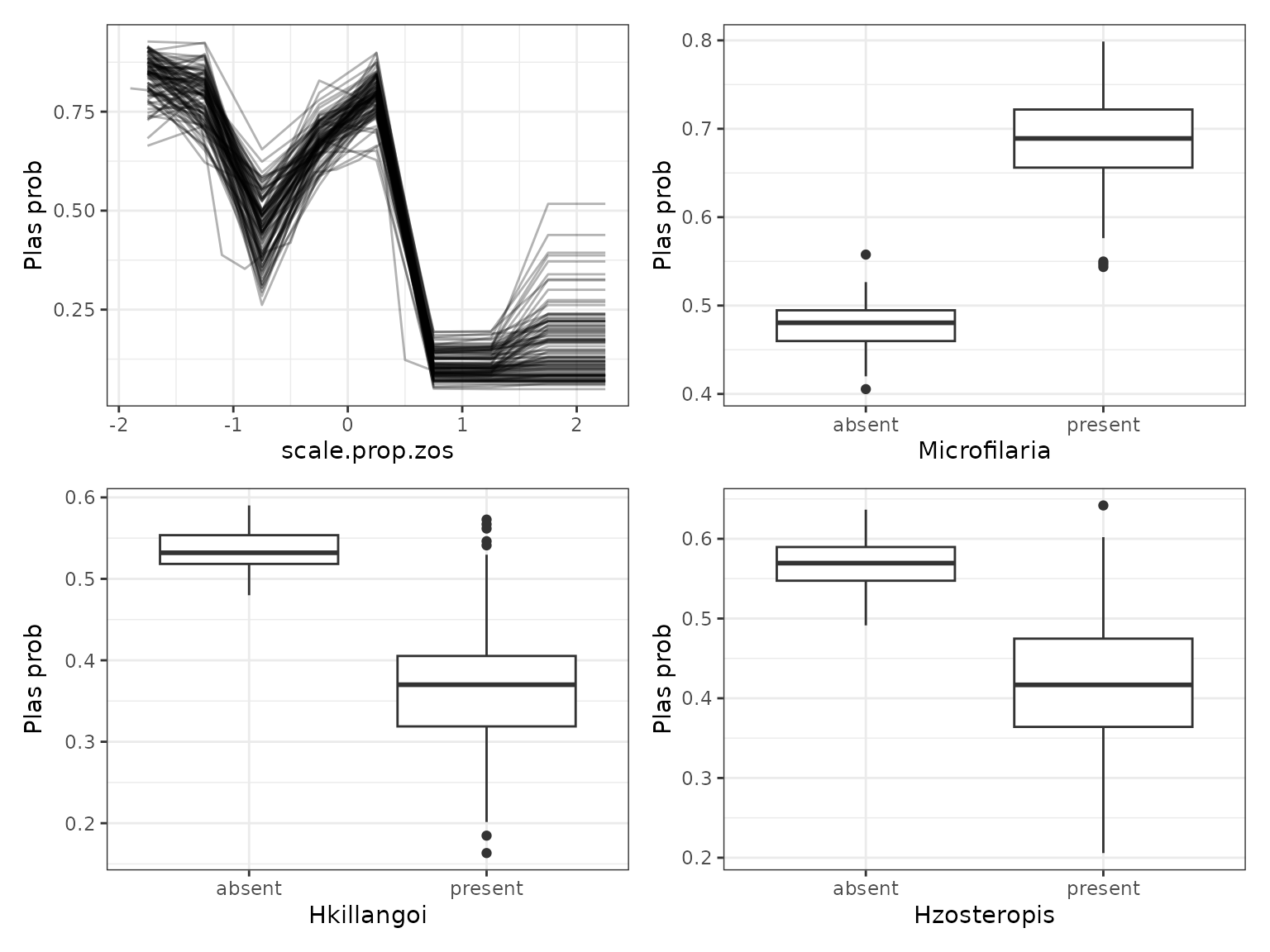

pds <- mrPdPlotBootstrap(
yhats_rf,
mrBootstrap_obj=bs_malaria,
vi_obj=bs_impVI,
target='Plas',
global_top_var=5
)
pds[[2]]_files/figure-html/bootstrapped_PDs-1.png)
These plots show that the presence of Microfilaria greatly increases the probability of observing Plasmodium (from ~0.47 to 0.70 while holding all other variables at their mean value). Note that these are marginal relationships (i.e., isolating the effect of each predictor). When host abundance is high, the probability of detecting Plasmodium decreases non-linearly (with a threshold around ~0.5). The other parasites have less effect.
To explore the effect of host abundance overall, we can use the
mrCovar() function.

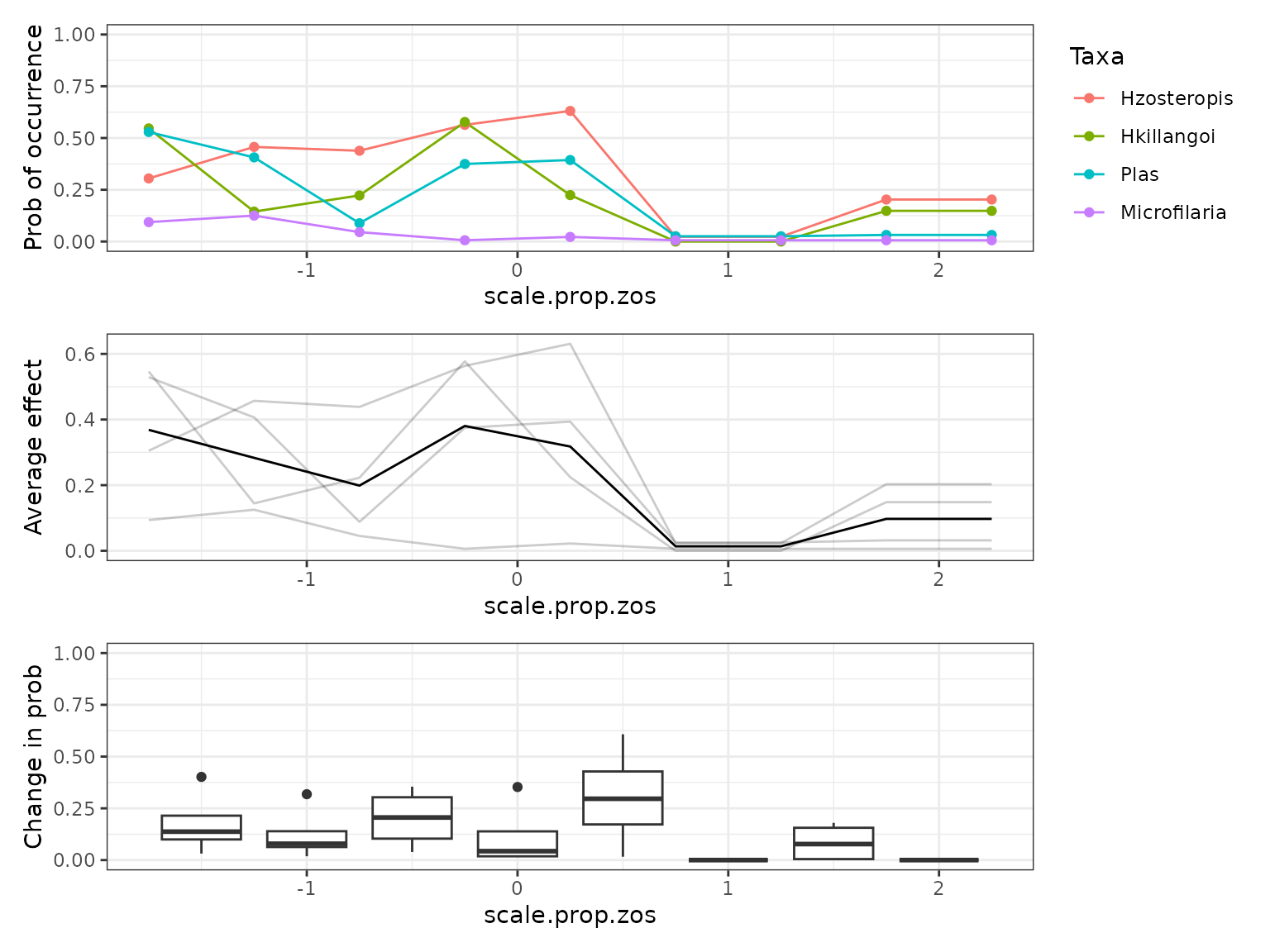

covar <- mrCovar(
yhats_rf,
var = "scale.prop.zos",
sdthresh = 0.01
)
covar[[1]] /
covar[[2]] /
covar[[3]]_files/figure-html/host_abundance_effect-1.png)
Note that this isn’t bootstrapped—each line represents a taxon. The second plot shows the community-wide average effect with taxon-specific effects silhouetted in the background. The third plot shows the community-wide average change in occurrence probabilities across host abundance. Note that the occurrence probabilities of all taxa drop at intermediate levels of host abundance (0.75–1.25).
Co-occurrence network
We can utilize all the bootstrapped partial dependence estimates
(PDs) to construct a co-occurrence network. The following code converts
the object to an igraph object and plots it. This is a
directed network, and edges are scaled by the standard deviation of the
marginal change in prediction (along the PD curves). Red edges are
positive associations (i.e., predicted occurrence increases with the
presence of the other taxon), and blue edges are negative.

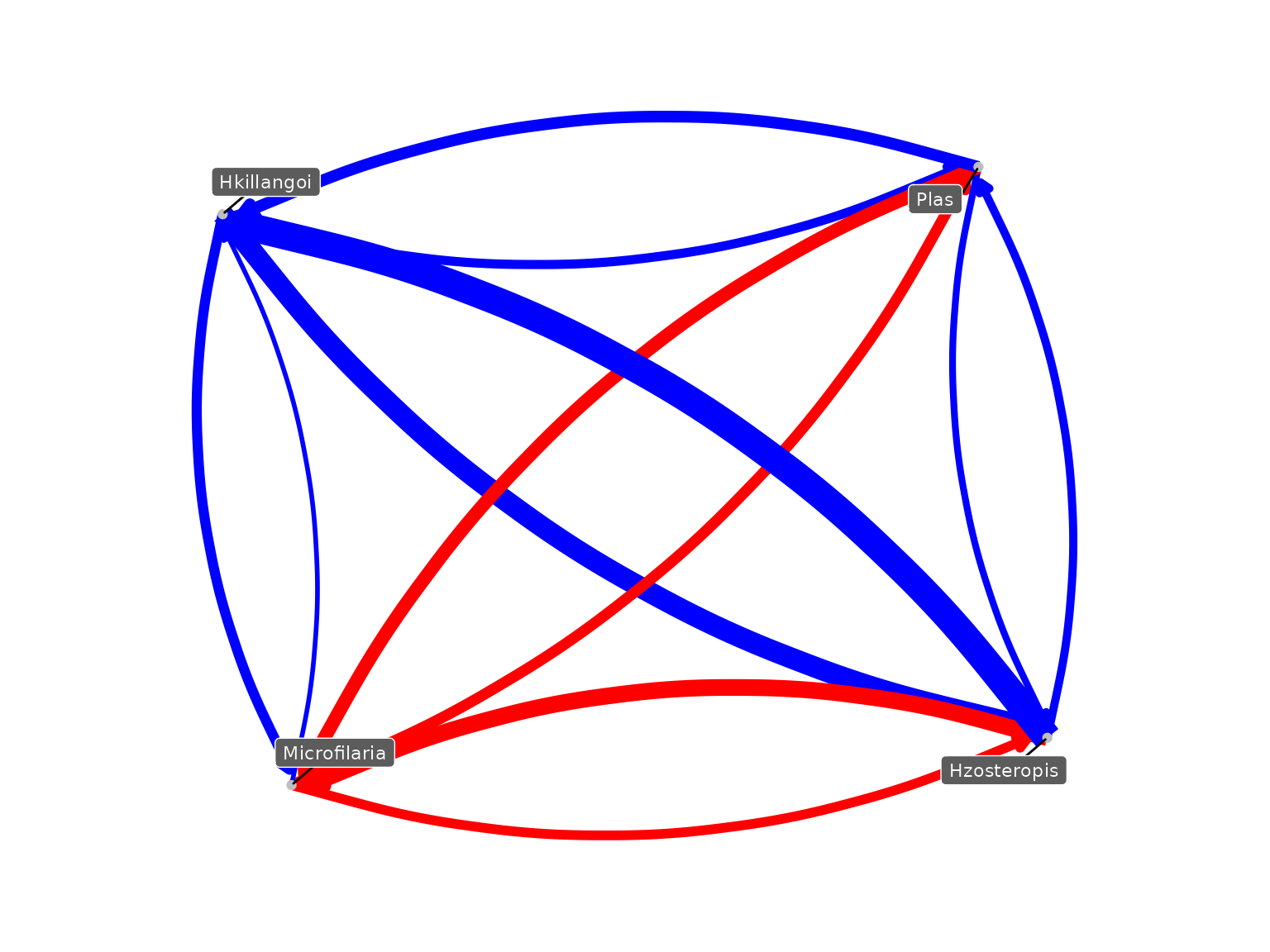

assoc_net<- mrCoOccurNet(bs_malaria)
# Based on simulations (not shown here), we use
# the following rule of thumb for associations:
# Any association > 0.05 for mean strength is
# included
assoc_net_filtered <- assoc_net %>%
filter(mean_strength > 0.05)
# Convert mrIML to igraph
g <- graph_from_data_frame(
assoc_net_filtered,
directed = TRUE,
vertices = names(Y)
)
E(g)$Value <- assoc_net_filtered$mean_strength
E(g)$Color <- ifelse(
assoc_net_filtered$direction == "negative",
"blue",
"red"
)
# Convert the igraph to a ggplot with NMDS layout
gg <- ggnetwork(g)
# Plot the graph
gg %>%
ggplot(
aes(
x = x, y = y,
xend = xend, yend = yend
)
) +
geom_edges(
aes(color = Color, linewidth = Value),
curvature = 0.2,
arrow = arrow(
length = unit(5, "pt"),
type = "closed"
)
) +
geom_nodes(
color = "gray",
size = degree(g, mode = "out")/2
) +
scale_color_identity() +
theme_void() +
theme(legend.position = "none") +
geom_nodelabel_repel(
aes(label = name),
box.padding = unit(0.5, "lines"),
data = gg,
size = 3,
segment.colour = "black",
colour = "white",
fill = "grey36"
) +
coord_cartesian(xlim = c(-0.2, 1.2), ylim = c(-0.2, 1.2))_files/figure-html/network_plot-1.png)

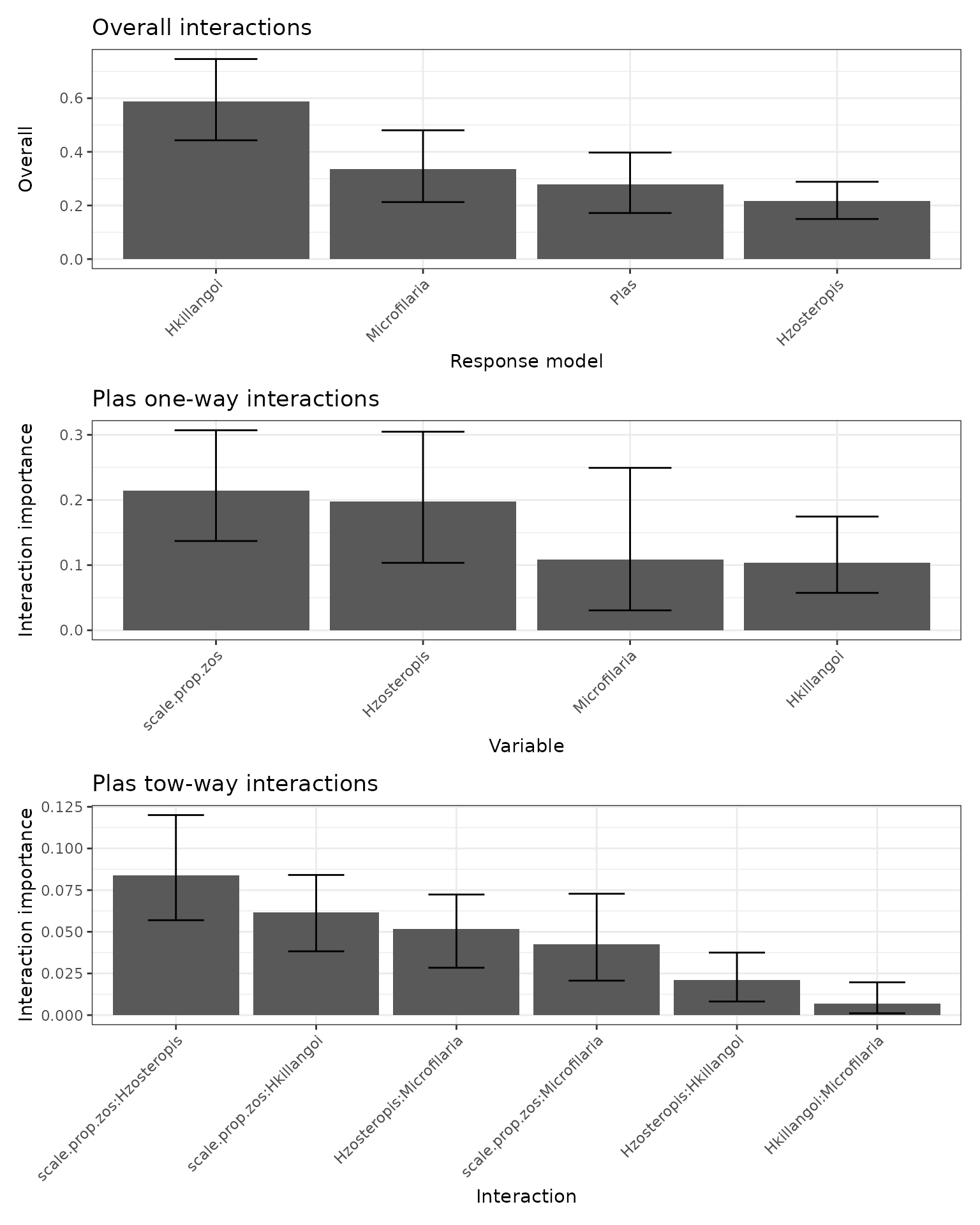

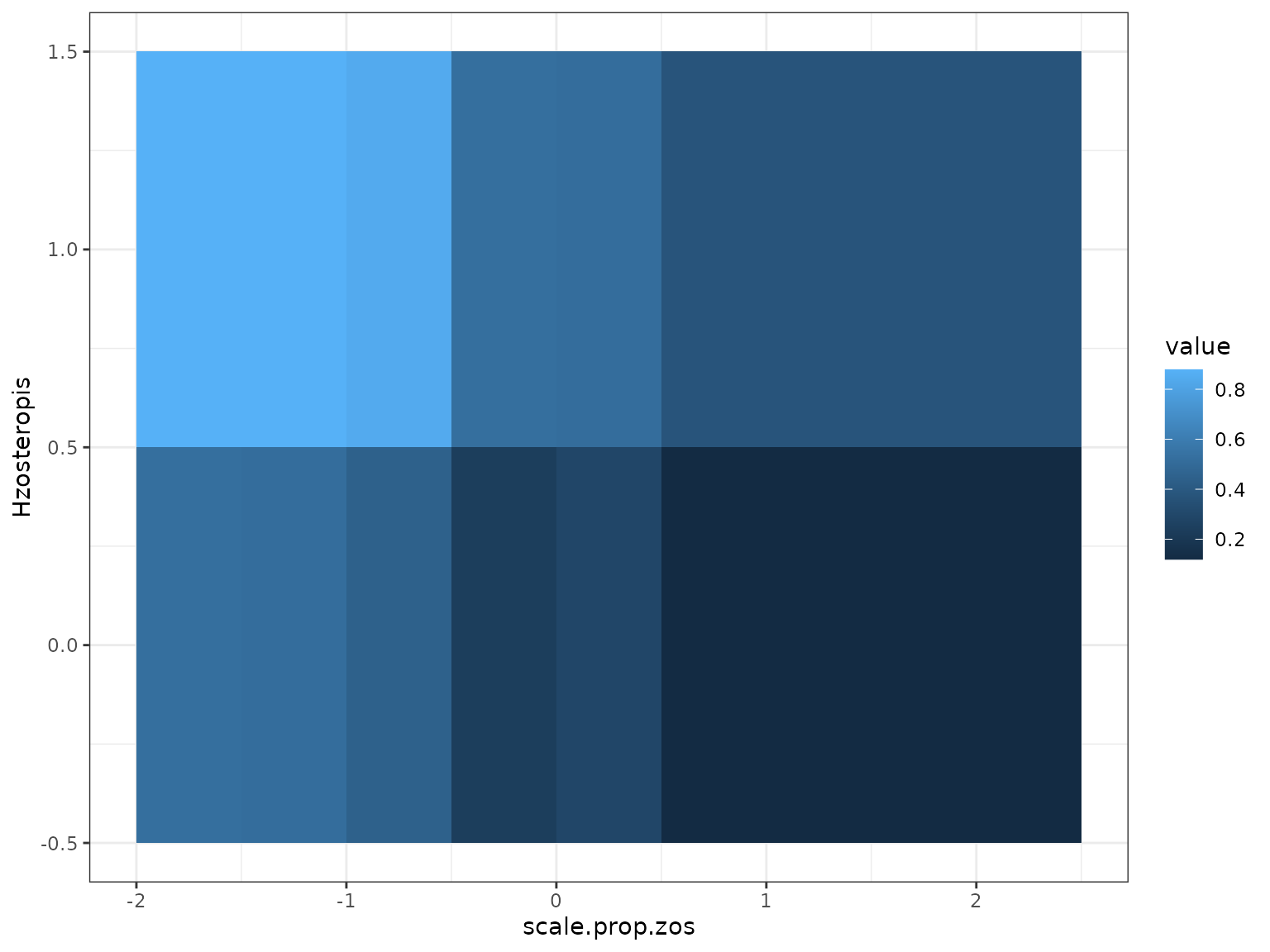

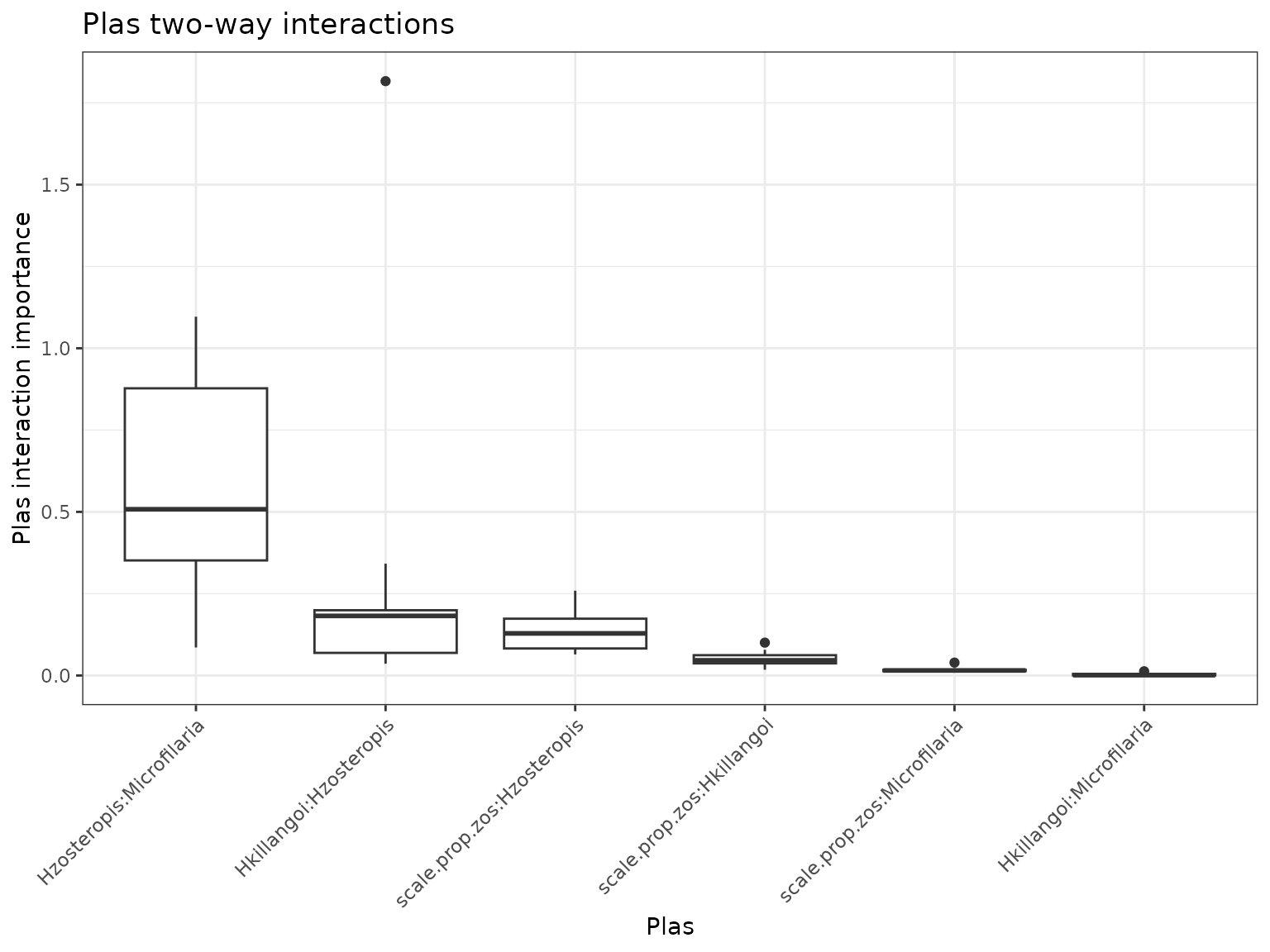

One-way, two-way, and three-way interactions
Finally, we can quantify the overall importance of interactions in
different taxa models, as well as the importance of one- and two-way
interactions for a specific taxon using the same bootstrapping approach.
To quantify interaction importance, we use H-statistics from the hstats
package.
int_ <- mrInteractions(
yhats_rf,
num_bootstrap = 100,
feature = "Plas",
top_int = 10
)
int_[[1]] / # overall plot
int_[[2]] / # individual plot for feature
int_[[3]] # two way plot for feature_files/figure-html/interactions-1.png)
The first plot shows that interactions account for an average of 60% (with a 90% bootstrap uncertainty interval of 44–81%) of variation in predictions for H.killangoi, and less for the other taxa. The second plot shows that interactions involving host abundance most affect predictions of Plasmodium (although H.zosteropis is also important and, according to the uncertainty intervals, could be even more important). This trend is similar community-wide. The last plot shows that the interaction between Haemoproteus presence and host abundance is the most important two-way interaction for Plasmodium, but this isn’t true community-wide, as host abundance and H.zosteropis form the strongest interaction overall. Taken together, we can see that interactions between taxa are mediated by host abundance.
Finally, we can explore specific interactions in more detail using 2D
partial dependence plots implemented in the flashlight
package. Below, we plot how the two-way interaction between host
abundance and H.zosteropis impacts the probability of detecting
Plasmodium.
fl <- mrFlashlight(
yhats_rf_downSamp,
response = "single",
index = 4 #index=4 selects Plas
)
fl %>%
light_profile2d(
c("scale.prop.zos", "Hzosteropis"),
data
) %>%
plot() +
theme_bw()_files/figure-html/two_way_int-1.png)
So, if H.zosteropsis is not present and the relative abundance of Zosterops species is low, the probability of observing Plasmodium is high (>0.7).
References
Cook et al., 2021: https://doi.org/10.18651/RWP2021-12 Kuhn (2014): https://doi.org/10.48550/arXiv.1405.6974 Fountain-Jones et al(2021): https://doi.org/10.1111/1755-0998.13495
